Spring Security with Authentication Provider

5 minute read

We have looked into basics of spring security in my previous post. Lets look into how we can authenticate a user from custom list;

So let’s start, first we create a spring boot application, for database we will use H2.

Enable Spring Security

In order to enable spring security in any spring application, just add the following dependency in your pom file.

<!--pom.xml-->

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-security</artifactId>
    </dependency>

That’s it you have enabled spring security.

We want to expose “/books” which is a public api i.e. anyone can access it. We have another set of harry potter books (“/secure/books”) which we want to be secured.

// src/main/java/in/kuros/controller/CartController.java

package in.kuros.controller;

import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;

import java.util.ArrayList;
import java.util.List;

@RestController
public class BookController {

    @GetMapping("/books")
    public List<String> getBooks() {
        final List<String> books = new ArrayList<>();
        books.add("A Little Forever");
        books.add("To Kill a Mockingbird");
        books.add("A Thousand Splendid Suns");

        return books;
    }

    @GetMapping("/secured/books")
    public List<String> securedBooks() {
        final List<String> books = new ArrayList<>();
        books.add("Harry Potter and the Philosopher's Stone");
        books.add("Harry Potter and the Chamber of Secrets");

        return books;

    }
}

Now run the application, you see by default, spring has auto configured the security

sign-in

Username is “user” & password to login, will be found in the logs something like this.


Using generated security password: fb610637-e0a6-423b-bb6b-1badf661d885

Try logging in.

Spring security configuration

So far so good, we have security configured, but we still have a problem. Both our apis are behind authentication. But we wanted only one api to be secured.

To fix this, we need to crete a config file which extends WebSecurityConfigurerAdapter. We need to override configure method as below.

// src/main/java/in/kuros/config/SecurityConfig.java

package in.kuros.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;

@Configuration
@EnableGlobalMethodSecurity(prePostEnabled = true)
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(final HttpSecurity http) throws Exception {
        http
                .authorizeRequests()
                .antMatchers("/books").permitAll()
                .antMatchers("/secured/*").authenticated();
        http
                .formLogin();
    }
}

Great now we have fulfilled our requirement, /books is public and /secured/books are restricted.

Lets look at what happened, we configured httpSecurity to authorize requests and permitted everyone to access /books, where for any url starting with /secured/ needs to be authenticated. We have also enforced formLogin() here.

H2 database setup in spring boot

Before we proceed further, lets enable H2 database to where we will store our user information.

To integrate H2 database, we need to the following dependency in our pom file..

<!-- pom.xml -->

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-data-jpa</artifactId>
    </dependency>
    <dependency>
        <groupId>com.h2database</groupId>
        <artifactId>h2</artifactId>
        <scope>runtime</scope>
    </dependency>

We have added dependency to enable JPA with H2 database. Next we will enable h2-console, we will add the property to our application.properties.

# src/main/resources/application.properties

spring.h2.console.enabled=true
spring.jpa.hibernate.ddl-auto=create
spring.datasource.data=classpath:db/data.sql
spring.jpa.properties.hibernate.enable_lazy_load_no_trans=true

Let’s start the server, connect to http://localhost:8080/h2-console

h2-db-login

user the following properties to login

driver class=org.h2.Driver
jdbc url=jdbc:h2:mem:testdb
username=sa
password=

But the moment you login, you will get an error:

Whitelabel Error Page
This application has no explicit mapping for /error, so you are seeing this as a fallback.

Sun May 12 13:31:45 IST 2019
There was an unexpected error (type=Forbidden, status=403).
Forbidden

To fix this, we will add the following configuration in our SecurityConfig

        http
                .csrf()
                .disable();

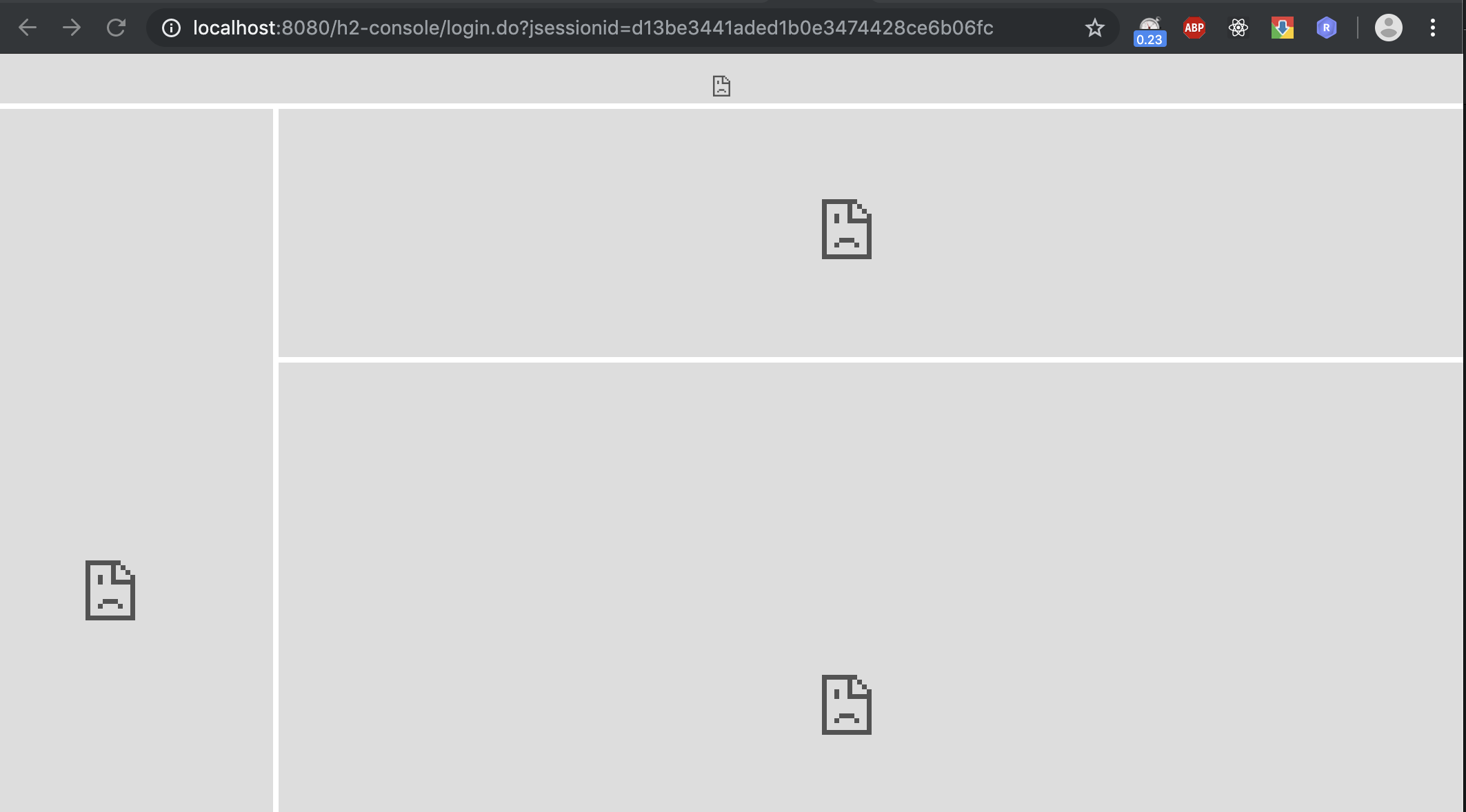

After this we are able to login but the page not rendered properly.

h2-db-login

so we need to add below configuration to allow any frame to run from the same origin.

        http
                .headers()
                .frameOptions().sameOrigin();

so we are able to login now.

Lets create the entity & repository:

// src/main/java/in/kuros/entity/User.java

@Entity
@Table(name = "users")
public class UserEntity {

    @Id
    @Column(name = "id")
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer id;

    @Basic
    @Column(name = "user_name")
    private String userName;

    @Basic
    @Column(name = "password")
    private String password;

    @OneToMany(mappedBy = "user")
    private List<UserRoles> userRoles;

    // getters & setters
}


// src/main/java/in/kuros/entity/UserRoles.java

@Entity
@Table(name = "user_roles")
public class UserRoles {

    @Id
    @Column(name = "id")
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer id;

    @Column(name = "user_id")
    private Integer userId;

    @Column(name = "role")
    private String role;

    @ManyToOne
    @JoinColumn(name = "user_id", referencedColumnName = "id", insertable = false, updatable = false)
    private UserEntity user;

    // getters and setters
}

We will also insert values in the tables users & user_roles, we will create db/data.sql

# src/main/resources/db/data.sql

INSERT INTO users (user_name, password) VALUES ('kuros', 'passwd');

INSERT INTO user_roles (user_id, role) VALUES (1, 'ADMIN'),
                                              (1, 'USER');

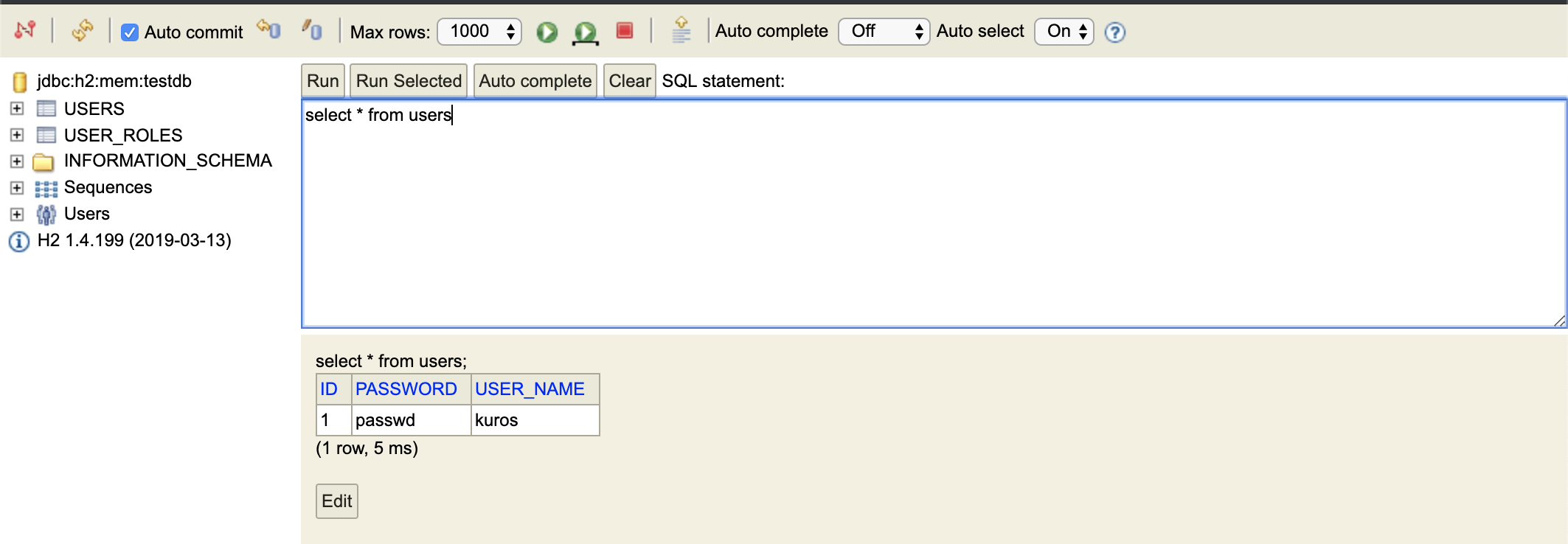

We have all our data setup, we will verify ( http://localhost:8080/h2-console ).

h2-db-login

User Authentication

Well, we have our api’s secured, but we still have a problem, we still rely on password generated by spring. We want to access our api’s using our users.

There are multiple ways we can handle it, but in this post we will focus on using authentication provider.

We will create a custom authentication provider. We need to implement authenticate method, you will get authentication object, it will contain username and credentials which we will validate.

After we validate the user we need to create new Token, but make sure you do not forward password beyond, you don’t want password to leak to other filters.

package in.kuros.custom;

import in.kuros.entity.UserEntity;
import in.kuros.entity.UserRoles;
import in.kuros.repository.UserRepository;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.authentication.AuthenticationProvider;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.stereotype.Component;

import java.util.Collection;
import java.util.List;
import java.util.stream.Collectors;

@Component
public class CustomAuthenticationProvider implements AuthenticationProvider {

    @Autowired
    private UserRepository userRepository;

    @Override
    public Authentication authenticate(final Authentication authentication) throws AuthenticationException {
        final String username = authentication.getName();
        final String password = authentication.getCredentials().toString();

        final List<UserRoles> userRoles = getUserIfAuthenticated(username, password);

        return new UsernamePasswordAuthenticationToken(username, null, getGrantedAuthorities(userRoles));
    }

    private Collection<? extends GrantedAuthority> getGrantedAuthorities(final List<UserRoles> userRoles) {
        return userRoles
                .stream()
                .map(role -> (GrantedAuthority) role::getRole)
                .collect(Collectors.toList());
    }

    private List<UserRoles> getUserIfAuthenticated(final String username, final String password) {
        final UserEntity entity = userRepository.findByUserName(username);

        if (entity == null) {
            throw new UsernameNotFoundException("Authentication failed");
        }

        if (!entity.getPassword().equals(password)) {
            throw new UsernameNotFoundException("Authentication failed");
        }

        return entity.getUserRoles();
    }

    @Override
    public boolean supports(final Class<?> aClass) {
        return aClass.equals(UsernamePasswordAuthenticationToken.class);
    }
}

Finally we will override the configure method and provide our custom authentication provider.

So our SecurityConfig is finally complete:

// src/main/java/in/kuros/config/SecurityConfig.java

package in.kuros.config;

import in.kuros.custom.CustomAuthenticationProvider;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.method.configuration.EnableGlobalMethodSecurity;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;

@Configuration
@EnableGlobalMethodSecurity(prePostEnabled = true)
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired private CustomAuthenticationProvider customAuthenticationProvider;

    @Override
    protected void configure(final HttpSecurity http) throws Exception {
        http
                .headers()
                .frameOptions().sameOrigin();

        http
                .csrf()
                .disable();

        http
                .authorizeRequests()
                .antMatchers("/books").permitAll()
                .antMatchers("/secured/**").authenticated();
        http
                .formLogin();
    }

    @Override
    protected void configure(final AuthenticationManagerBuilder auth) throws Exception {
        auth.authenticationProvider(customAuthenticationProvider);
    }
}

Now we have a fully functional app with security enabled.

Full code can be found here: Spring Security with Authentication Provider
